col::ElemDop Struct Reference

Elementary DOP enclosing one polygon. More...

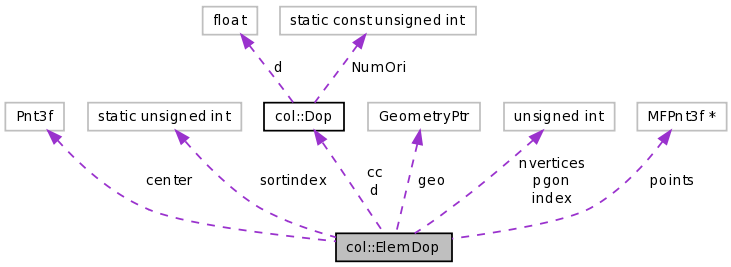

Collaboration diagram for col::ElemDop:

[legend]List of all members.

Debugging
static unsigned int	sortindex
bool	operator< (const ElemDop &other) const
	Comparison operators.
bool	operator> (const ElemDop &other) const
bool	operator<= (const ElemDop &other) const
bool	operator>= (const ElemDop &other) const
void	operator= (const ElemDop &other)
static void	setSortIndex (unsigned int index)
Public Attributes
Dop	d
const osg::MFPnt3f *	points
unsigned int	pgon [MaxNVertices]
unsigned int	nvertices
osg::GeometryPtr	geo
unsigned int	index
Pnt3f	center
Dop	cc

---

Detailed Description

Elementary DOP enclosing one polygon.

This is only needed for the construction process

Author:

Gabriel Zachmann

Warning:

Sorting an array/vector of ElemDop's is not thread-safe, because the sortindex is a class variable!

Todo:

---

Member Function Documentation

bool col::ElemDop::operator<

(

const ElemDop &

other

)

const

Comparison operators.

Returns:

Text for return value.

Needed for sorting a vector of ElemDop's.

The DOPs should have been blown up a little already; no epsilon threshold is included in the comparison.

Todo:

Sort mit ordentlichem BinaryPredicate machen! (dann ist das auch thread-safe)

See also:

DopTree::constructHier

---

Member Data Documentation

unsigned int col::ElemDop::sortindex [static]

Todo:

---

The documentation for this struct was generated from the following files:

• ColDopTree.h
• ColDopTree.cpp

---
